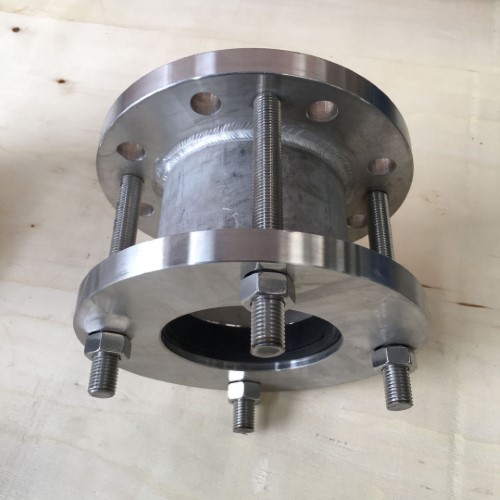

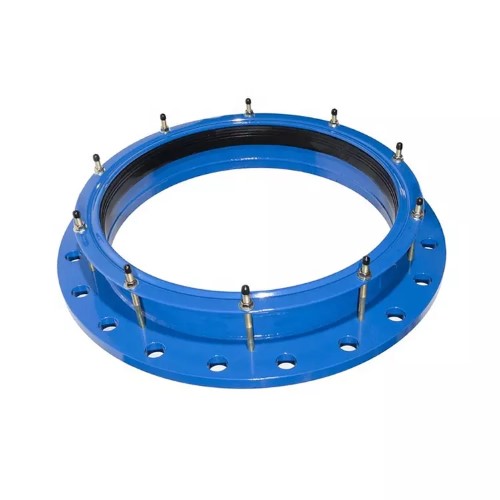

Dedicated Flange Adaptors
Description
LAMINAR Restraint Flange Adaptors can also be supplied for situations where end pull-out force is a concern.
When placing an order for LAMINAR Dedicated Flange Adaptors, it’s essential to provide the required information, including pipe outside diameter and applicable flange standards, to avoid any errors in flange selections.
Note that the thickness of LAMINAR Flanges may differ from the mating flange since the Flange Adaptor’s flange will not be subject to the full end or side thrust. If you’re using HDPE and GRP pipes, LAMINAR Flange Adaptors with full sleeves can be supplied to prevent end pull-out.
Specifications
PN
PN10-PN40 (ANSI CL#150-400)
DN
63.0 to 3,020.0 mm
Medium
Water, wastewater, sewage, seawater
Flange Drilling
Accordance to EN1092-1, PN10, PN16, PN25 or PN40. Available on request for ANSI B16 Class 125/ 150, BS10 Table D/ E
Adaptor flange
Mild Steel to BS EN10025-2:2004 Grade S235JR. SS is available on request
End Flange
Mild Steel to BS EN10025-2:2004 Grade S235JR. SS is available on request
Gasket
EPDM
Stud Bolt
Mild Steel to BS EN ISO898-1:2009 Property Class 4.8. Stainless steel A2 or A4 is optional
Nut
Hot Dipped Galvanized Steel. Stainless steel A2 or A4 is optional
Washer
Hot Dipped Galvanized Steel. Stainless steel A2 or A4 is optional
Coating
Min 250μ Epoxy Coating RAL 5017 blue, WRAS approved
Application
Pumping stations | Utilities | Wastewater treatment plants | Seawater desalination plants | Power plants | Chemical plants | Industrial
Features
- ISO 9001 certified
- In-house production design, utilizing the latest CAD softwares, supported by technical staff and finite element analysis programmes
- Stringent raw material quality control and certification from international test laboratories
- Product approvals held for many countries worldwide
- In house quality control at all stages of production, with Hydrostatic Test Facilities
